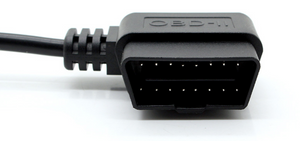

Generic OBD2 OVMS Cable (left)


  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
£9.76 (inc VAT) £8.13 (exc VAT)
SKU:
1139300
Weight:
118.00 Grams
Shipping:
Calculated at checkout


Generic ODB-II pin-out (for all non Nissan or Kia cars)

Designed to work only with OpenVehicles OVMS modules

Pinout:

J1962-M     DB9-F      Signal

4                  3       Chassis/Power GND
6                  7       CAN-H (primary CAN)
14                2       CAN-L (primary CAN)
13                5       CAN-H (alternate CAN)
12                4       CAN-L (alternate CAN)
16                9       +12V Vehicle Power
