Doepke Pre-populated Board with Type-B Heat Pump RCCB

Doepke Pre-populated Board with Type-B Heat Pump RCCB

£274.08 (Inc. VAT)
£228.40 (Ex. VAT)
Current Stock:
Adding to cart… The item has been added
Description

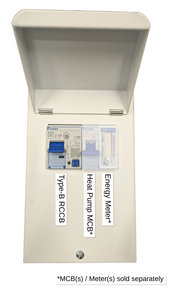

Doepke consumer unit / fuse box pre-populated with:

  • 100A Main switch (DHS2-100)
  • Type-B Heat Pump RCCB 40A 30mA (DFS 2 040-2/0,03-HP)
  • 6 outgoing ways
  • Dimensions: 26 x 19 x 11cm

MCBS & SDM120 meter(s) sold separately

The Doepke DFS 2 040-2/0,03-HP Type-B RCCB is suitable for heat pumps, meeting manufacturer requirements including Vaillant.

It's Capable of detecting AC, pulsating DC, and smooth DC residual current leakage up to 150 kHz

Example configuration:

  • Outgoing way1: Outdoor heat pump unit MCB
  • Outgoing way2: Immersion heater MCB
  • Outgoing way3: Indoor heat pump controls MCB
  • Outgoing way4: Electric meter for outdoor heat pump
  • Outgoing way5: Electric for indoor heat pump controls
  • Outgoing way6: SPD

Documentation



 https://www.doepke.co.uk/RCCBs-Type-HP.php



Datasheet



Installation Manual



Doepke Heat Pump RCD Technical Note



Doepke Heat Pump RCD Overview
